[ONOS] Connecting ONOS to OvS

<Purpose>

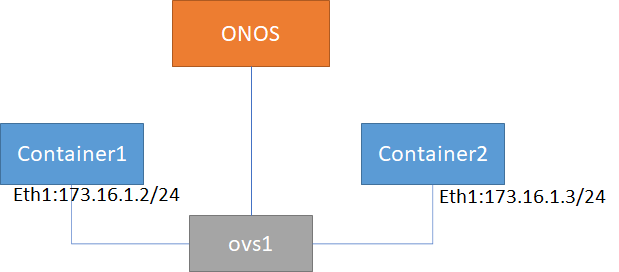

- ONOS controls OVS connecting two docker containers





<ONOS applications installation>

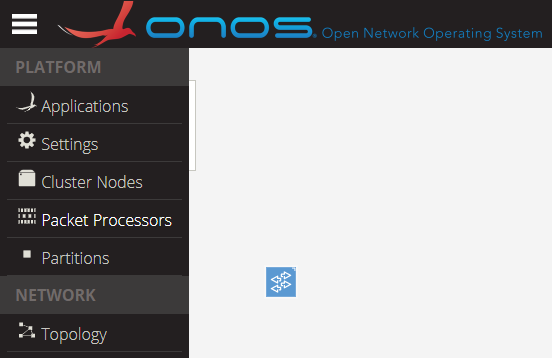

1. Click Applications in PLATFORM

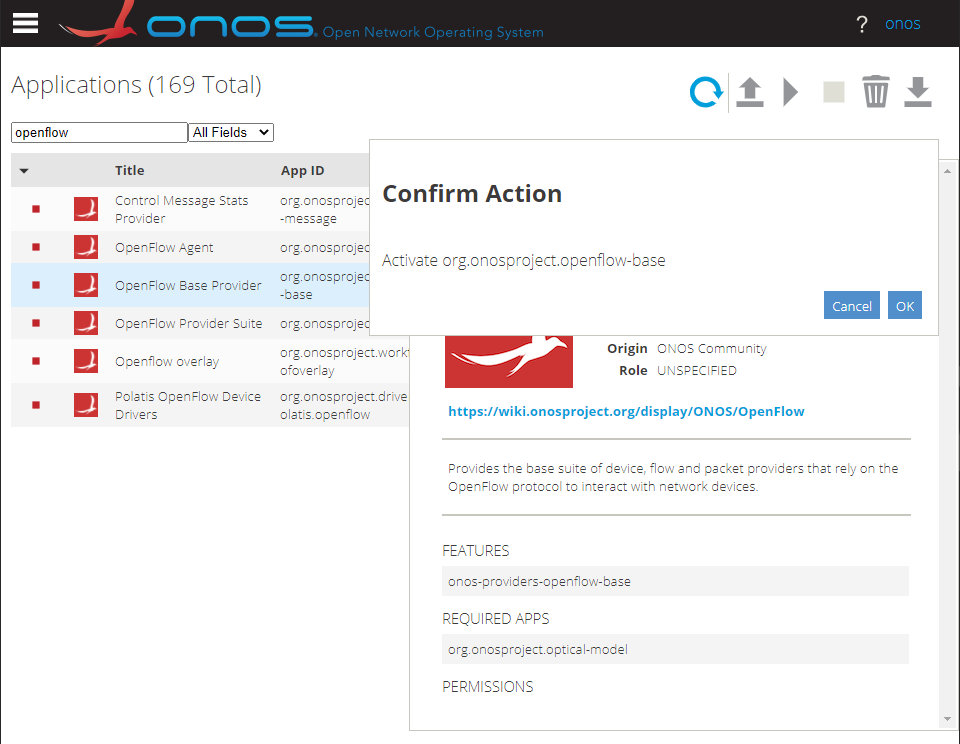

2. installing Base Provider

'>' raise 'Confirm Action' window for Base Provider. then OK.



3. Done Base Provider installation

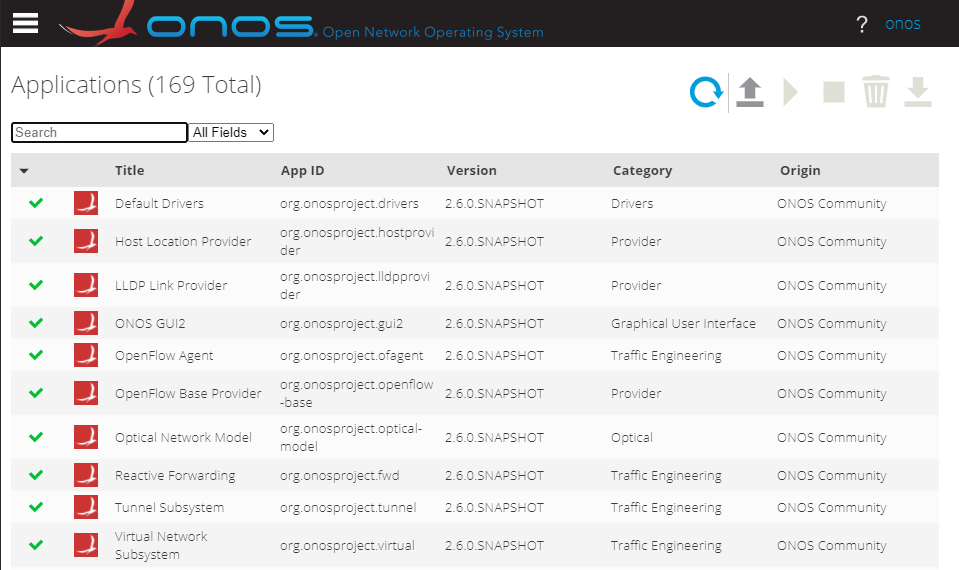

4. Installing others

OpenFlow Agent, Reactive Forwarding (this is a switch), Host Location Provider, LLDP(to see topology).



5. Checking ONOS IP address

terry@ubuntu:~$ sudo docker network inspect bridge [     {         "Name": "bridge",         "Id": "844810ed51d3c3122a9efe4cacd9201cac83f58b30edfe0a413610bbed54fc67",         "Created": "2021-02-24T15:26:39.636855738+08:00",         "Scope": "local",         "Driver": "bridge",         "EnableIPv6": false,         "IPAM": {             "Driver": "default",             "Options": null,             "Config": [                 {                     "Subnet": "172.17.0.0/16",                     "Gateway": "172.17.0.1"                 }             ]         },         "Internal": false,         "Attachable": false,         "Ingress": false,         "ConfigFrom": {             "Network": ""         },         "ConfigOnly": false,         "Containers": {             "4a5e28dbd82d12eb2861b4111dcb5d55d2a4ec2ffd005af7a46e6811457a01fa": {                 "Name": "container1",                 "EndpointID": "ed6fe3e6c54a336b9d9c21e1454e81cde0baa060490b9140826c2ae3bb4edf0e",                 "MacAddress": "02:42:ac:11:00:02",                 "IPv4Address": "172.17.0.2/16",                 "IPv6Address": ""             },             "4d04a4fe63440731806f8410fccc3387d00bc7b0ecdc07aa115f555abd218304": {                 "Name": "onos1",                 "EndpointID": "ee997561e2492dd1e6c87800ae554d682ec3382e8ef5ecef32a1805f6d4d23e7",                 "MacAddress": "02:42:ac:11:00:04",                 "IPv4Address": "172.17.0.4/16",                 "IPv6Address": ""             },             "9472a0ed0e7cd8bfd76e58f5acd9f692df06230027945d86ec8290501309ece6": {                 "Name": "container2",                 "EndpointID": "cb1215189e34010314029e8dba9e087659b285d16d93080a5440842c1a4b51e1",                 "MacAddress": "02:42:ac:11:00:03",                 "IPv4Address": "172.17.0.3/16",                 "IPv6Address": ""             }         },         "Options": {



6. Connecting ONOS to OVS

terry@ubuntu:~$ sudo ovs-vsctl set-controller ovs1 tcp:172.17.0.4:6653 terry@ubuntu:~$ sudo ovs-vsctl show d6db2e9b-397a-40f3-b842-bb66874d6f7e     Bridge "ovs1"         Controller "tcp:172.17.0.4:6653"             is_connected: true         Port "3dde9c9d3dd84_l"             Interface "3dde9c9d3dd84_l"         Port "ovs1"             Interface "ovs1"                 type: internal         Port "d2aed7715ae94_l"             Interface "d2aed7715ae94_l"     ovs_version: "2.5.9" terry@ubuntu:~$



7. Check topology in WebGUI

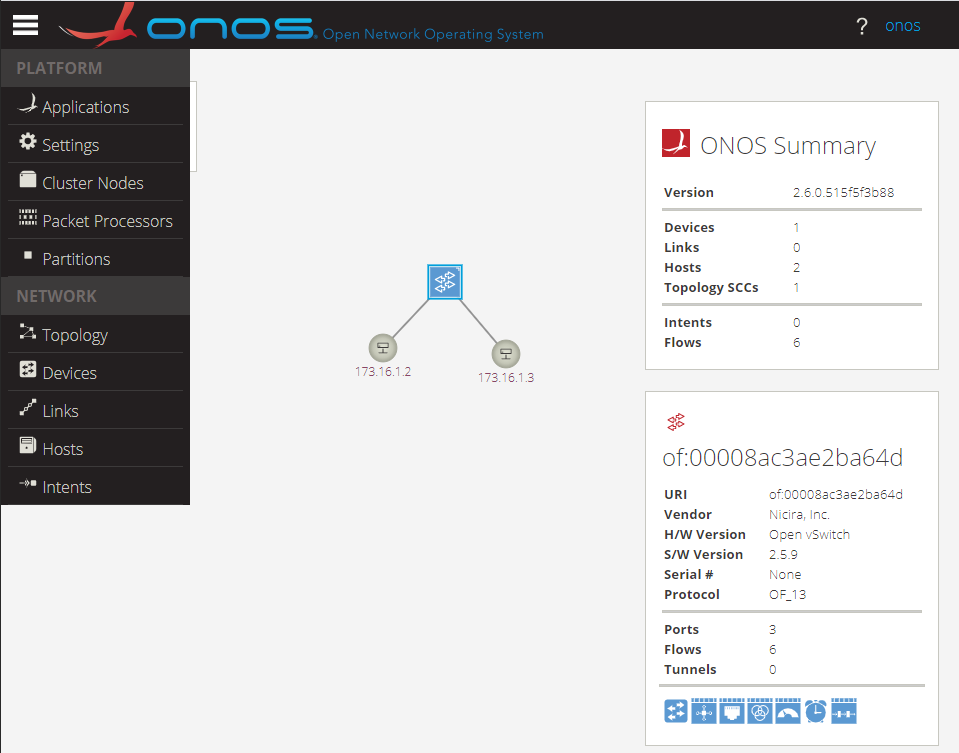

8. Press 'h' key to expand the topology

You can see two containers.
