Openstack Train Installation on Oracle Virtual Box (3)

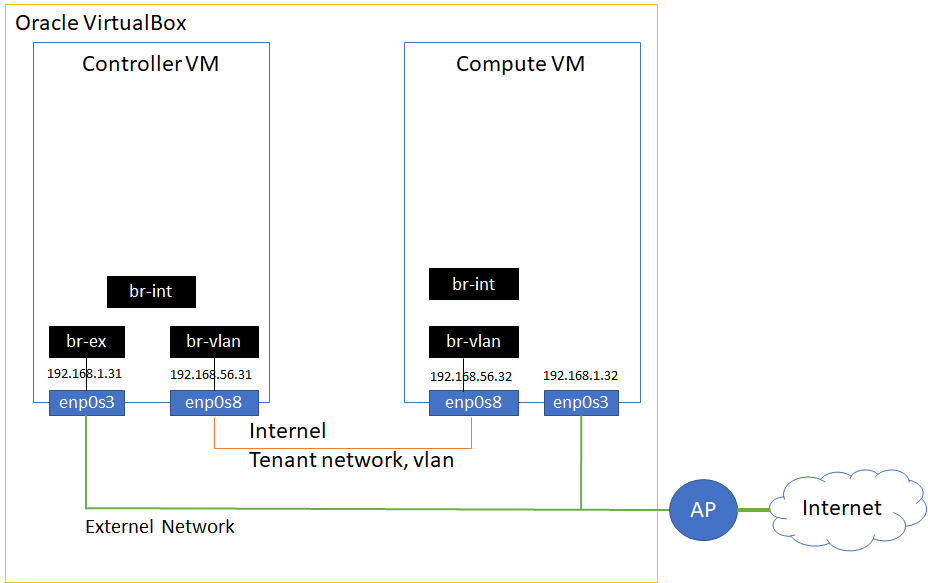

After installation, you can check all the network Openstack



<Open vSwitch>

[root@controller ~]# ovs-vsctl show 4a857211-e1c7-4ca5-b16a-21dd7b05dcf6     Manager "ptcp:6640:127.0.0.1"         is_connected: true     Bridge br-vlan         Controller "tcp:127.0.0.1:6633"             is_connected: true         fail_mode: secure         datapath_type: system         Port br-vlan             Interface br-vlan                 type: internal         Port "enp0s8"             Interface "enp0s8"         Port phy-br-vlan             Interface phy-br-vlan                 type: patch                 options: {peer=int-br-vlan}     Bridge br-int         Controller "tcp:127.0.0.1:6633"             is_connected: true         fail_mode: secure         datapath_type: system         Port int-br-ex             Interface int-br-ex                 type: patch                 options: {peer=phy-br-ex}         Port br-int             Interface br-int                 type: internal         Port int-br-vlan             Interface int-br-vlan                 type: patch                 options: {peer=phy-br-vlan}     Bridge br-ex         Controller "tcp:127.0.0.1:6633"             is_connected: true         fail_mode: secure         datapath_type: system         Port br-ex             Interface br-ex                 type: internal         Port phy-br-ex             Interface phy-br-ex                 type: patch                 options: {peer=int-br-ex}         Port "enp0s3"             Interface "enp0s3"     ovs_version: "2.12.0"

[root@compute ~]# ovs-vsctl show d556fb18-1368-4fc8-ad6d-dfa7b2ec66c6     Manager "ptcp:6640:127.0.0.1"         is_connected: true     Bridge br-int         Controller "tcp:127.0.0.1:6633"             is_connected: true         fail_mode: secure         datapath_type: system         Port br-int             Interface br-int                 type: internal         Port int-br-vlan             Interface int-br-vlan                 type: patch                 options: {peer=phy-br-vlan}     Bridge br-vlan         Controller "tcp:127.0.0.1:6633"             is_connected: true         fail_mode: secure         datapath_type: system         Port "enp0s8"             Interface "enp0s8"         Port br-vlan             Interface br-vlan                 type: internal         Port phy-br-vlan             Interface phy-br-vlan                 type: patch                 options: {peer=int-br-vlan}     ovs_version: "2.12.0"





<Linux interface>

[root@controller ~]# ip a show 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000     link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00     inet 127.0.0.1/8 scope host lo        valid_lft forever preferred_lft forever     inet6 ::1/128 scope host        valid_lft forever preferred_lft forever 2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master ovs-system state UP group default qlen 1000     link/ether 08:00:27:35:5b:55 brd ff:ff:ff:ff:ff:ff     inet6 fe80::a00:27ff:fe35:5b55/64 scope link        valid_lft forever preferred_lft forever 3: enp0s8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master ovs-system state UP group default qlen 1000     link/ether 08:00:27:da:68:49 brd ff:ff:ff:ff:ff:ff     inet6 fe80::a00:27ff:feda:6849/64 scope link        valid_lft forever preferred_lft forever 4: enp0s9: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000     link/ether 08:00:27:de:74:f6 brd ff:ff:ff:ff:ff:ff     inet 10.10.1.31/24 brd 10.10.1.255 scope global enp0s9        valid_lft forever preferred_lft forever     inet6 fe80::a00:27ff:fede:74f6/64 scope link        valid_lft forever preferred_lft forever 5: ovs-system: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000     link/ether d6:a9:83:df:fb:63 brd ff:ff:ff:ff:ff:ff 8: br-ex: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default qlen 1000     link/ether 08:00:27:35:5b:55 brd ff:ff:ff:ff:ff:ff     inet 192.168.1.31/24 brd 192.168.1.255 scope global br-ex        valid_lft forever preferred_lft forever     inet6 fe80::4c80:20ff:fef5:c48/64 scope link        valid_lft forever preferred_lft forever 9: br-vlan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default qlen 1000     link/ether 08:00:27:da:68:49 brd ff:ff:ff:ff:ff:ff     inet 192.168.56.31/24 brd 192.168.56.255 scope global br-vlan        valid_lft forever preferred_lft forever     inet6 fe80::c02c:f4ff:fea7:4342/64 scope link        valid_lft forever preferred_lft forever 10: br-int: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000     link/ether 9a:b3:da:bf:28:46 brd ff:ff:ff:ff:ff:ff

[root@compute ~]# ip a show 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000     link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00     inet 127.0.0.1/8 scope host lo        valid_lft forever preferred_lft forever     inet6 ::1/128 scope host        valid_lft forever preferred_lft forever 2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000     link/ether 08:00:27:1c:b9:b7 brd ff:ff:ff:ff:ff:ff     inet 192.168.1.32/24 brd 192.168.1.255 scope global enp0s3        valid_lft forever preferred_lft forever     inet6 fe80::a00:27ff:fe1c:b9b7/64 scope link        valid_lft forever preferred_lft forever 3: enp0s8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master ovs-system state UP group default qlen 1000     link/ether 08:00:27:41:f3:6e brd ff:ff:ff:ff:ff:ff     inet6 fe80::a00:27ff:fe41:f36e/64 scope link        valid_lft forever preferred_lft forever 4: enp0s9: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000     link/ether 08:00:27:7f:18:fe brd ff:ff:ff:ff:ff:ff     inet 10.10.1.32/24 brd 10.10.1.255 scope global enp0s9        valid_lft forever preferred_lft forever     inet6 fe80::a00:27ff:fe7f:18fe/64 scope link        valid_lft forever preferred_lft forever 7: ovs-system: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000     link/ether 76:7d:3d:44:12:a7 brd ff:ff:ff:ff:ff:ff 8: br-vlan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default qlen 1000     link/ether 08:00:27:41:f3:6e brd ff:ff:ff:ff:ff:ff     inet 192.168.56.32/24 brd 192.168.56.255 scope global br-vlan        valid_lft forever preferred_lft forever     inet6 fe80::a08c:36ff:fec8:7d45/64 scope link        valid_lft forever preferred_lft forever 9: br-int: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000     link/ether ae:2c:3b:41:e4:45 brd ff:ff:ff:ff:ff:ff



<Openstack Services>



For more detail information,

Please refer to this link

docs.openstack.org/operations-guide/ops-network-troubleshooting.html





Now, we are ready to use Openstack!
